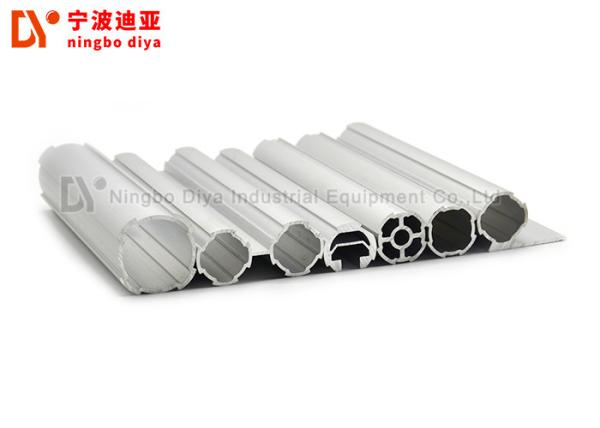

aluminium extruded sections for factory mould assembly line
Description:
Lean tube –A flexible and module pipe system using the Kaizen and Lean manufacturing ideologies.
The material is aluminium alloy. OD 28mm,30mm,32mm,TK 0.8mm,1.0mm,1.2mm,1.5mm,L 4m to assemble rack & worktable.
1. Capable creatively to solve the producing lines material supply;
2. A flexible and module pipe system using the kaisen and lean manufacturing ideologies;
3. Offering complete solution to create ergonomic work places,custom and shelves devices;
4. This simple-to-use solution will simplify your processes, increase your productivity and
decrease your costs;
Parameter:
| Name | New generation Lean Aluminum Alloy Pipe |
| Thickness | 0.8 /1.0/1.2/1.5/2.0 mm |
| Material | Aluminum Alloy |
| Surface treatment | Galvanized |
| Length | 4000mm/6000mm |
| Outer Diameter | 27.8 - 28.2 mm |
| Usage | Workstation, bench, rack, trolley, production line, cart , etc. |
| Model | Material | | N/W | Length |
| General Frame | Aluminum alloy | | 410g/m | 4m |
| T Slot Frame | Aluminum alloy | | 640g/m | 4m |
| Loaded Frame | Aluminum alloy | | 721g/m | 4m |
| PC Frame | Aluminum alloy | | 666g/m | 4 |
Application:
1)Lean Pipe Production Line
2)Lean management table
3)Lean Office Furniture
4)Lean pipe assembly line
5)Lean Warehouse shelves
Features of the 3rd Lean Pipe:
1) Easy to assemble: increased productivity with reduced man-hours for assembly ;
2) Light weight: all frames and connecting parts are made of aluminum;
3) Athletics: Excellent appearance with alu mite-treated aluminum;
4) Recycling: environment-friendly with recycling and reuse;
5) Muti-functional: versatility with varying accessory parts;
Specifications:
1. customized 3rd lean tube
2. sustainable
3. easy to assemble
4. china manufacturer
